Futaba Receivers + Spares

Futaba R304SB 4ch Rx with Telemetry FHSS (S-Bus) (HV) 2.4GHz

Futaba R304SB 4ch Rx with Telemetry FHSS (S-Bus) (HV) 2.4GHz
The R304SB is a compact little 4 channel receiver using T-FHSS telemetry. Suitable for HV applications the R304SB has an operating voltage range of 3.6 up to 8.4v.

T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.

• Compact size

• T-FHSS telemetry

• Operating voltage of 3.6 - 8.4v

• Weighs only 6.7g!

Specifications:
  • Modulation: T-FHSS
  • Weight: 6.7g
  • Voltage: 3.6 - 8.4v
  • Channels: 4
  • Dimensions: 35 x 33 x 12 mm


Price: 42.50 (Including VAT at 20%)


Quantity:

Futaba R616FFM 2.4GHz 6Ch Rx FASST

Futaba R616FFM 2.4GHz 6Ch Rx FASST
This ultra compact and lightweight 2.4GHz receiver from Futaba features Molex style connectors. Perfect for the lightest parkfly and indoor aircraft.

Specifications:
  • Channels: 6
  • Height: 7mm
  • Length: 38mm
  • Modulation: FASST 2.4GHz
  • Weight: 6.3g
  • Width: 22mm


Price: 38.00 (Including VAT at 20%)


Quantity:

Futaba R2006 6ch Rx 2.4GHz S-FHSS Receiver

Futaba R2006 6ch Rx 2.4GHz S-FHSS Receiver
Supplied with the new 6JG radio set, the 6 channel R2006GS full range receiver is both small and light, and uses Futaba’s advanced FHSS transmission system for superior interference rejection. It can be used together with a wide range of Futaba transmitters, including 2PL, 3PL, 4PL, 4YFG and 6JG and can operate as both FHSS and S-FHSS.

    Specification
  • Weight: 7.8g
  • Channels: 6
  • Dimensions: 43 x 25 x 9mm


Price: 31.00 (Including VAT at 20%)


Quantity:

Futaba R2008SB Receiver 2.4GHz S-FHSS (Air)

Futaba R2008SB Receiver 2.4GHz S-FHSS (Air)
The Futaba R2008SB is a full range 8 channel receiver with built in S-Bus functionality. It also comes equipped to handle high voltage applications (up to 7.4v).

    Specification
  • High-voltage operation.
  • Frequency-hopping Spread Spectrum design.
  • Dual Antenna Diversity.
  • S.Bus compatibility.
  • Modulation: 2.4GHz S-FHSS/FHSS
  • Weight: 9.5 g
  • Voltage: 4.8 - 7.4v
  • Channels: 8
  • Current: 140mA
  • Dimensions: 24.9 x 42.8 x 14.0 mm



Price: 39.80 (Including VAT at 20%)


Quantity:

Futaba R2104GF Receiver 2.4GHz S-FHSS

Futaba R2104GF Receiver 2.4GHz S-FHSS
Able to function in both FHSS and S-FHSS modes, this new and low cost four channel received can be used with a wide range of Futaba transmitters, including 2PL, 3PL, 4PL, 4YFG and 6JG and can be operated with up to 7.4V battery packs. Using Brushless or Digital servos enables S-FHSS (high-Speed) usage.

Specifications:
  • Weight: 8g
  • Channels: 4
  • Dimensions: 39 x 26 x 10.1mm


Price: 35.60 (Including VAT at 20%)


Quantity:

Futaba R2106 6ch Rx Micro 2.4GHz S-FHSS (Air)

Futaba R2106 6ch Rx Micro 2.4GHz S-FHSS (Air)
This new 6 channel receiver is perfect for all type of park fly models, both fixed wing and helicopters. Weighing only 4 grams and with extremely compact dimensions this new FHSS receiver is very popular!

    Specification
  • Range: 300m
  • Length: 38mm
  • Width: 21mm
  • Height: 10mm
  • Weight: 4g
  • Voltage: 4.8 - 7.4V
  • Channels: 6 Ch.
  • Frequency: 2.4GHz FHSS

More Pics...



Price: 25.50 (Including VAT at 20%)


Quantity:

Futaba R3008SB 8ch Rx T-FHSS (S-Bus) (HV) 2.4GHz

Futaba R3008SB 8ch Rx T-FHSS (S-Bus) (HV) 2.4GHz
The new and full range Futaba R3008SB receiver is designed to be used with the equally new 10J transmitter, and has 8 conventional outputs, or a full 10 through the S-Bus or S-Bus 2 outputs, whilst of course a mix is also possible by using 7 or 8 conventional servos and 2 or 3 S-Bus or S-Bus2 servos, or even additional conventional servos via an SBD decoder lead. The extremely compact dimensions of only 47.3 x 24.8 x 14.6 (max) and end connectors make this the perfect receiver for almost all applications, ranging from power models through helicopters and gliders.

Specifications:
  • Modulation: 2.4GHz T-FHSS
  • Weight: 7.5g
  • Voltage: 3.5 - 8.4v
  • Channels: 8
  • Dimensions: 47.3 x 24.8 x 14.6mm



Price: 42.50 (Including VAT at 20%)


Quantity:

Futaba R6106HFC 6ch Rx 2.4GHz FASST Receiver

Futaba R6106HFC 6ch Rx 2.4GHz FASST Receiver
6 Channel high-speed receiver from Futaba. A 7ms frame rate gives this receiver extremely low latency, for virtually real-time response, End pin design means quick and easy installation; Easy Link does away with binding plugs use with any servo in normal mode, or high speed mode with digital servos mid range receiver designed for carbon fuselage sailplanes and aircraft with a wingspan up to 1300 mm.

More Details...



Price: 53.50 (Including VAT at 20%)


Quantity:

Futaba R617 7ch RX 2.4GHz FASST

Futaba R617 7ch RX 2.4GHz FASST
You wanted an even more cost-effective mid-range 2.4GHz Futaba receiver and now youve got it! The price of the terrific R617FS/2-4 has been dramatically reduced, making it one of the competitive Futaba receivers around! The R617 is small and lightweight, yet gives greatly improved response time when compared to older, non 2.4GHz units, with crisp instantaneous performance!

  • Weight: 9.8g
  • Channels: 7
  • Dimensions: 40 x 27 x 9mm


Price: 50.50 (Including VAT at 20%)


Quantity:

Futaba R6014HS High Speed FASST Receiver

Futaba R6014HS High Speed FASST Receiver
Futaba R6014HS High Speed FASST Receiver - view 1Futaba R6014HS High Speed FASST Receiver - view 2Futaba R6014HS High Speed FASST Receiver - view 3

Once again Futaba lead the way, the R6014HS being the only 14 channel 2.4GHz receiver in the world, being suitable for even the largest and most sophisticated models, yet weighing a mere 21 grams. Aimed at the advanced pilot, and developed alongside the matching FTM-14 module for the 12FG/12Z/14MZ and FX40 transmitters, the combination will be deservedly popular for large scale models, jets and advanced helicopter use.

This receiver from Futaba differs from the previous 14ch receiver because it can run on 2 modes. There is a "Normal Mode" where the receiver works like all previous Futaba 2.4 GHz receivers but there is also a "High Speed" setting with high resolution for the demanding modeller.

The "Normal Mode" accepts any type of servos or the peripherals as the frame rate of the output is 14ms. The "High Speed mode" only accepts digital servos (including BLS series).

The frame rate of the High Speed Mode outputs are 7ms (twice the standard speed). The outputs for other channels allow the use of any type of servos as the frame rate of these outputs are still 14ms on the High Speed mode.

Specifications:
  • Weight: 21g
  • Channels: 14
  • Dimensions: 52.5 x 37.5 x 16mm



Price: 145.00 (Including VAT at 20%)


Quantity:

Futaba R6303SB Receiver (S-Bus) (HV) 2.4GHz FASST

Futaba R6303SB Receiver (S-Bus) (HV) 2.4GHz FASST
  • FASST 7CH / Multi CH mode
  • PWM 3CH (CH1,2,3)
  • S.BUS 16+2CH
  • Small and light
  • Dual antenna diversity (coaxial antenna)
  • Full range

    Specification
  • Modulation: 2.4GHz FASST
  • Weight: 7.2g
  • Voltage: 3.7 - 7.4V
  • Channels: Standard 3Ch (S.BUS 16+2)
  • Dimensions: 22.5 x 37.4 x 9.3 mm

Larger Pic...



Price: 59.90 (Including VAT at 20%)


Quantity:

Futaba R6208 Receiver 8/18ch Rx (S-Bus) (HV) 2.4GHz FASST

Futaba R6208 Receiver 8/18ch Rx (S-Bus) (HV) 2.4GHz FASST
The R6208SB FASST receiver has been developed for use with 7.4V batteries and high voltage servos, and as such does away with the need for a voltage regulator. Has S-BUS capability upto 18 channels

  • Weight: 13.8g
  • Channels: 8 (PWM)/18 (S-Bus)
  • Dimensions: 24.9 x 47.3 x 14.3mm


Price: 110.00 (Including VAT at 20%)


Quantity:

Futaba R7003SB Receiver - S-Bus (HV) 2.4GHz FASSTest

Futaba R7003SB Receiver - S-Bus (HV) 2.4GHz FASSTest
Primarily developed for use in helicopters but equally suitable for fixed wing models, this tiny full range FASSTest receiver weighs in at only 7.2g!

The R7303SB telemetry enabled receiver, a high-voltage design that operates up to 3 channels using the 3 standard PWM outputs or up to an incredible 18 channels (16 proportional + 2 digital) using the S-Bus port. That means a simpler setup and full support for S-Bus and S-Bus2 servos.

As supplied the R7303SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors available seperatly.

Specifications:
  • Modulation: FASSTest
  • Weight: 7.2g
  • Voltage: 3.7 - 7.4v
  • Channels: 3 Channel (18 S-Bus)
  • Dimensions: 37.4 x 22.5 x 9.3mm


Price: 68.90 (Including VAT at 20%)


Quantity:

Futaba R7008SB Receiver (S-Bus) (HV) 2.4GHz FASSTest

Futaba R7008SB Receiver (S-Bus) (HV) 2.4GHz FASSTest
The Futaba R7000SB telemetry enabled receiver, a high-voltage design that operates up to 8 channels using the 8 standard PWM outputs or up to 18 channels (16 proportional + 2 digital) using the S-Bus port.

That means a simpler setup and full support for S-Bus and S-Bus2 servos. As supplied the R7008SB FASSTest receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors due to be available soon.

Price: 99.00 (Including VAT at 20%)


Quantity:

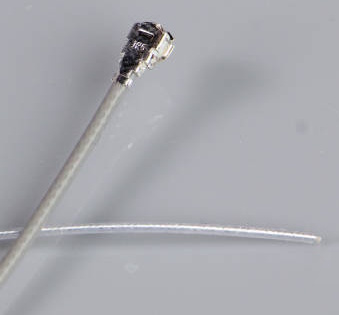

Aerial Cable for R617 & R608 each

Aerial Cable for R617 & R608 each
The standard receiver aerial used in the following 2.4gHz receivers.606FS, 617FS, 608FS, 6014FS

Price: 6.49 (Including VAT at 20%)


Quantity:

2.4Ghz 400mm Extended Aerial Pair

2.4Ghz 400mm Extended Aerial Pair
Pair of extended 400 mm receiver aerials for 2.4 GHz FASST aircraft/helicopter receivers, which allows the receiver aerials to be deployed outside the fuselage in models with all-carbon canopies or fuselages. These aerials are also ideal for use in jet models, where the additional length allows perfect positioning away from the turbine/jetpipe. With care the aerials can be exchanged for the standard aerials by any experienced user.

Price: 12.70 (Including VAT at 20%)
