- Description

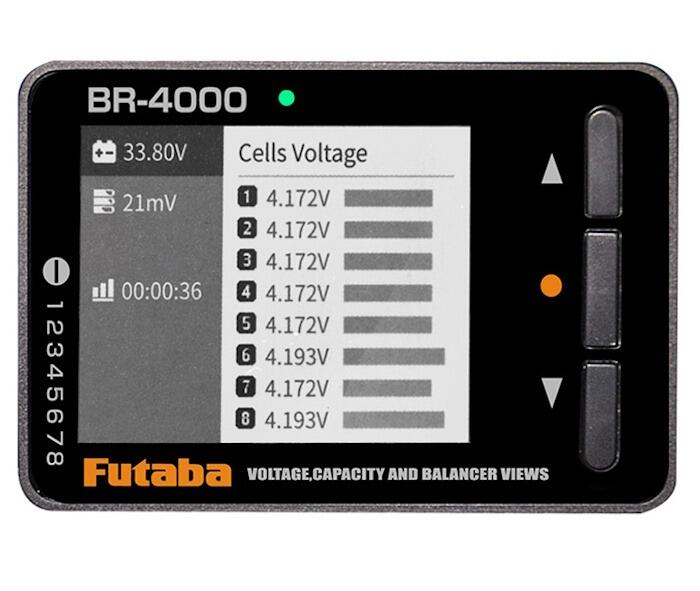

The Futaba BR-4000 is a sophisticated battery checker with cell balance function.
BR-4000 can be use to check the status of a wide variety of different types of battery packs commonly used in R/C models. Li-Po, Li-HV, Li-Fe and Li-Ion packs of 1-8 cells, and Ni-MH and Ni-Cd packs of 1-10 cells are suitable for checking with the BR-4000. In addition, the BR-4000 is equipped with firmware update and cell balance adjustment functions together with a USB charging port.
Features
• Main function: Battery check function
• Operating voltage: 5.0V to 36V
• Input voltage (1S): DC0.8V to 15V
• Compatible battery cells: 1 to 8S
• Voltage measurement accuracy: ±0.005V @ 4.2V
• USB charging port: QC2.0/3.0, BC1.2 maximum output 12V/2A
• Compatible battery: Lipo/LiHV/LiFe/Liion (1-8S)
• NiMH/NiCd (1-10 cells)

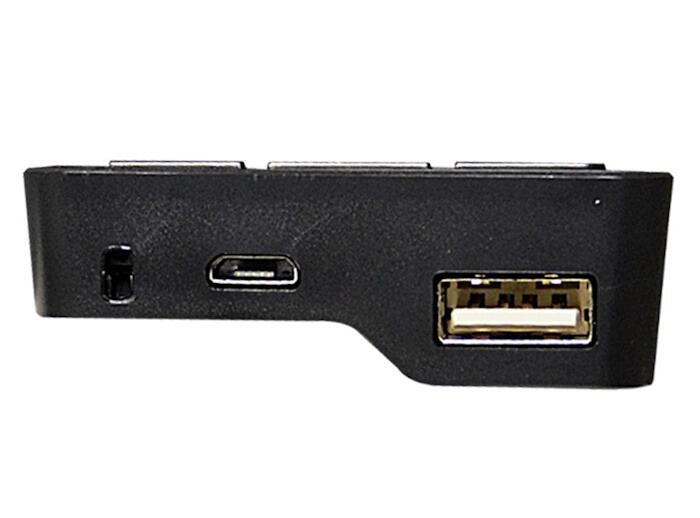

• Micro USB B port (for firmware update)
• Dimensions/Weight: 80X55X19mm/59g
• LCD screen: 2.4 inch 340X240
Note: Because the minimum operating voltage of BR-4000 is 5.0V, when measuring a 1S battery,

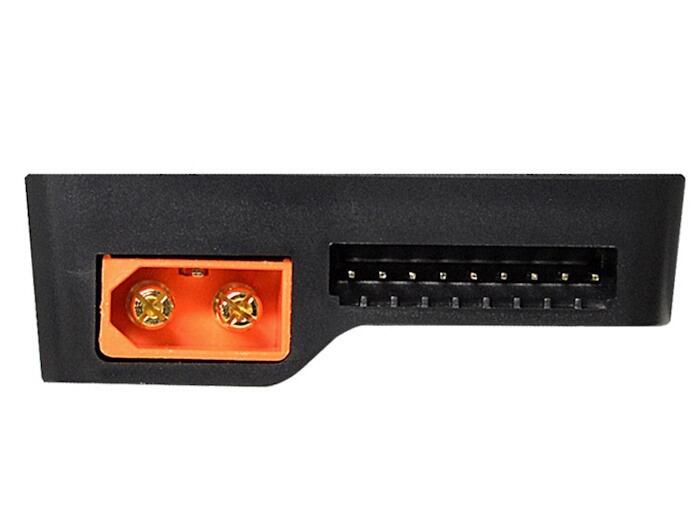

a separate 5.0V or higher power supply must be connected to the XT60i connector.
Specification
Weight: 59g
Dimensions: 80 x 55 x 19mm
LiPo: 1 - 8S (LiFe, LiPo, LiHV Li-Ion)
NiCad/Ni-MH: 1-10 cell (NiCd, NiMH)
