- Description

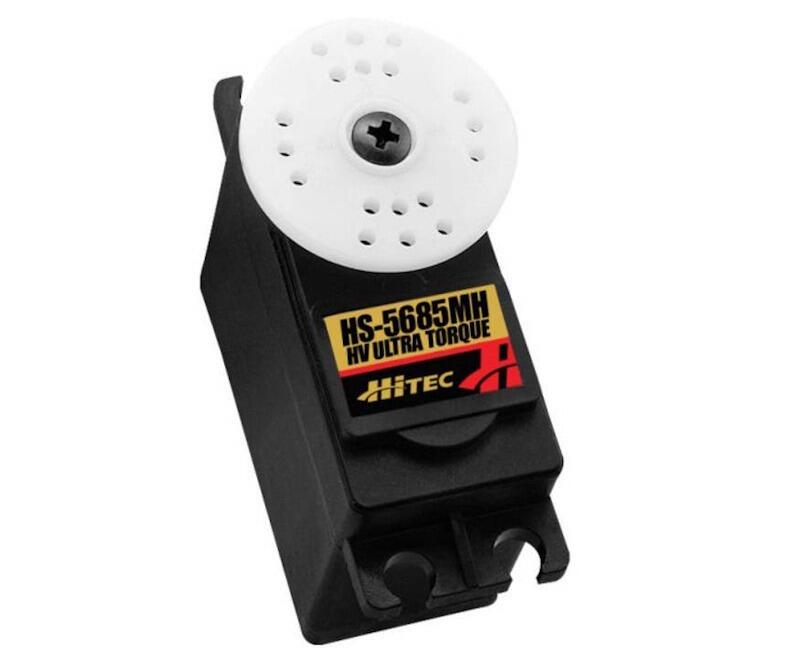

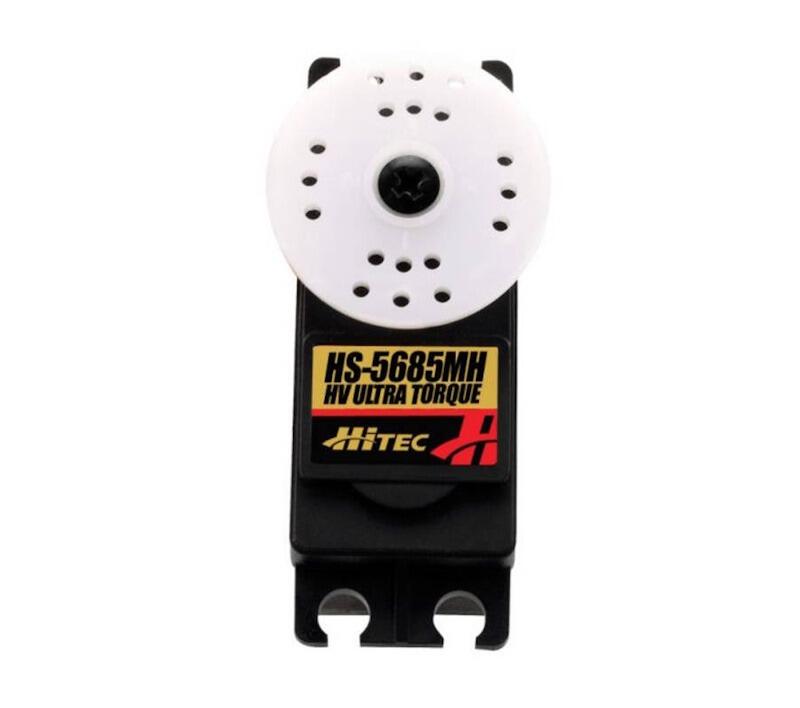

The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V Li-Po battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications. Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.
Key Features
Alloy servo arm included.
Programmable digital circuit heavy-duty metal gear train (MK first gear).
Dual ball bearing supported output shaft.
Programmable features include: dead band width, direction of rotation, speed of rotation (slower), end points, neutral points, fail-safe on / off, fail-safe point.
Specifications
Motor Type: 3 Pole Ferrite
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.20 / 0.17 Second @ 60⁰
Torque kg./cm. (6.0V/7.4V):11.3 / 12.9

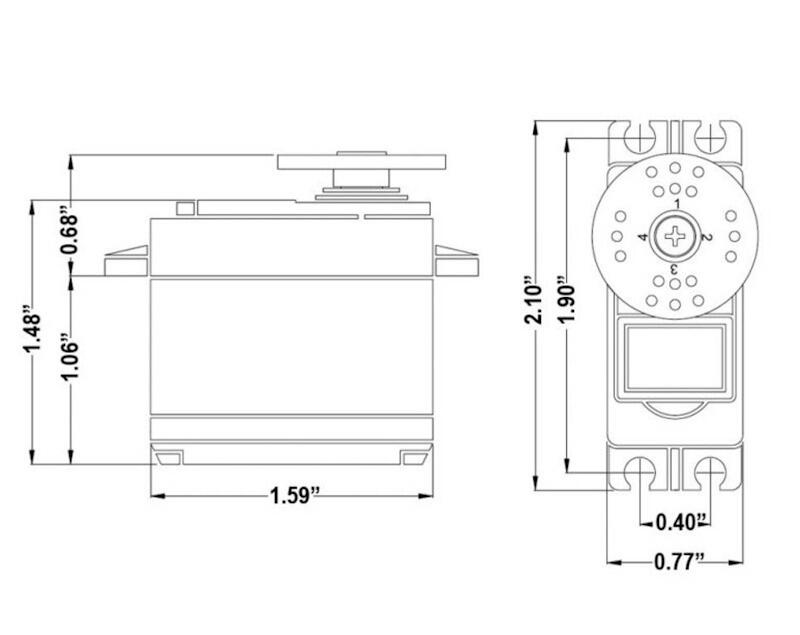

Size in Inches: 1.6 x 0.8 x 1.5 in
Size in Millimeters: 41 x 20 x 38 mm
Weight oz 2.1
Weight 60g
