Code
MAC4906
In stock: 0Sorry! We're out of stock
£0.00
£8.95
RRP
£9.95
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
- Description
The PG4906D is part of MacGregor's range of standard sized digital servos.
Features
High performance digital standard servo
Plastic Gears
Dual Ball Bearing
Cored Motor
Ideal for RC cars, buggies and general light sports aircraft
JR style plug and lead
Specifications
Dead Band: 2µs
Working Frequency: 1520µs/330hz
Operating Voltage: DC 4.8 ~ 6.0V
Operating Speed (4.8V): 0.14sec/60 degrees
Operating Speed (6V): 0.12sec/60 degrees
Stall Torque (4.8V): 5.7kg.cm
Stall Torque (6.0V): 6.2kg.cm

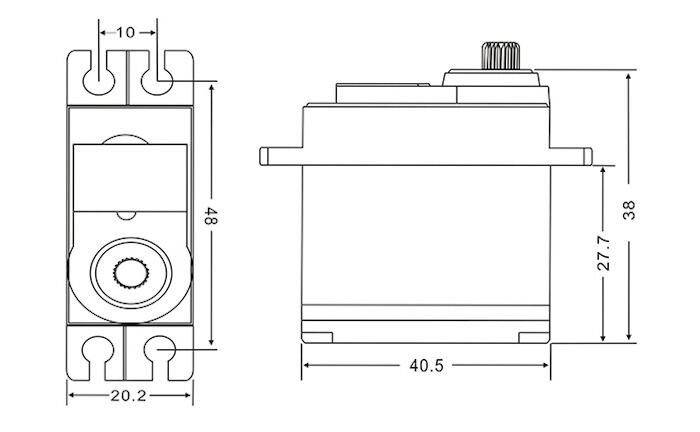

Dimensions: 40.5 x 20.2 x 38mm
Weight: 49g
Connector Wire Length: 265 mm (10.43in) JR Style
