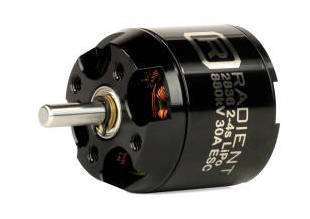

Brushless Motor 2836 880KV 2-4S

Product Description

A high-quality, beautifully engineered, smooth and powerful brushless outrunner motor designed and manufactured specifically for model aircraft

Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It’s a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.

Key Features

14 Pole 12 slot hi-torque rotor.

CNC-machined 6061-T6 billet heatsink can.

High purity, maximum efficiency copper windings.

High RPM ABEC5 oversized bearings.

Precision balanced rotor offers smooth, reliable performance.

Super-thin (0.2mm) stator laminations.

Precision engineered for maximum energy conversion.

What's in the Box

1x Radient high-torque brushless motor.

1x Shaft prop drive.

1x Can prop drive.

1x X-type mounting bracket.

4x Short countersunk screws for attaching the bracket to the motor.

4x Long cap head screws for can prop drive installation.

Specification:

Watts (W): 340

Rec’d ESC (A): 30

Rec’d LiPo (cells): 2-4S

Shaft Dia. (mm): 4.0

Bullet Connector (mm): 3.5

Weight (g): 67

Prop Size / 3S (in): 10x6 / 11x5.5

Prop Size / 4S (in): 9x6 / 10x6

***Download Instructions***
